Eighteeth NanoMotor Brushless Endomotor – 6:1 Contra-Angle
- Brand: Eighteeth
- Category: Endo Motors
- 100% genuine product from authorized supplier
- After-sales support in the UAE
Key Features
- Ultra-light and ergonomic: 95 g handpiece (including contra-angle), 193 × 20 mm.
- Brushless motor: strong torque at high speed with less reciprocal vibration.
- TCA mode (Tactile Controlled Activation): explore the canal by hand, then activate the file at 10, 20 or 40 rpm. Helpful in curved and complex canals and for bypassing ledges.
- ARC mode (Adaptive Reciprocation): adjusts the reverse angle in real time based on torque feedback, giving larger cutting angles under low resistance and smaller angles under high resistance.
- Colour-coded display: speed, torque and angle values change colour when they go above or below the file system's preset values. Mainstream rotary and reciprocating file systems are pre-programmed.
- Measure while you shape: connects to the Eighteeth FindPex or E-Pex apex locator for simultaneous length measurement and preparation (requires the matching measuring wire).
- Mini 6:1 contra-angle (E-SAM 6:1): small head with 360° free rotation.
Delivery in 1-2 working days within the UAE
FREE delivery on orders over AED 150

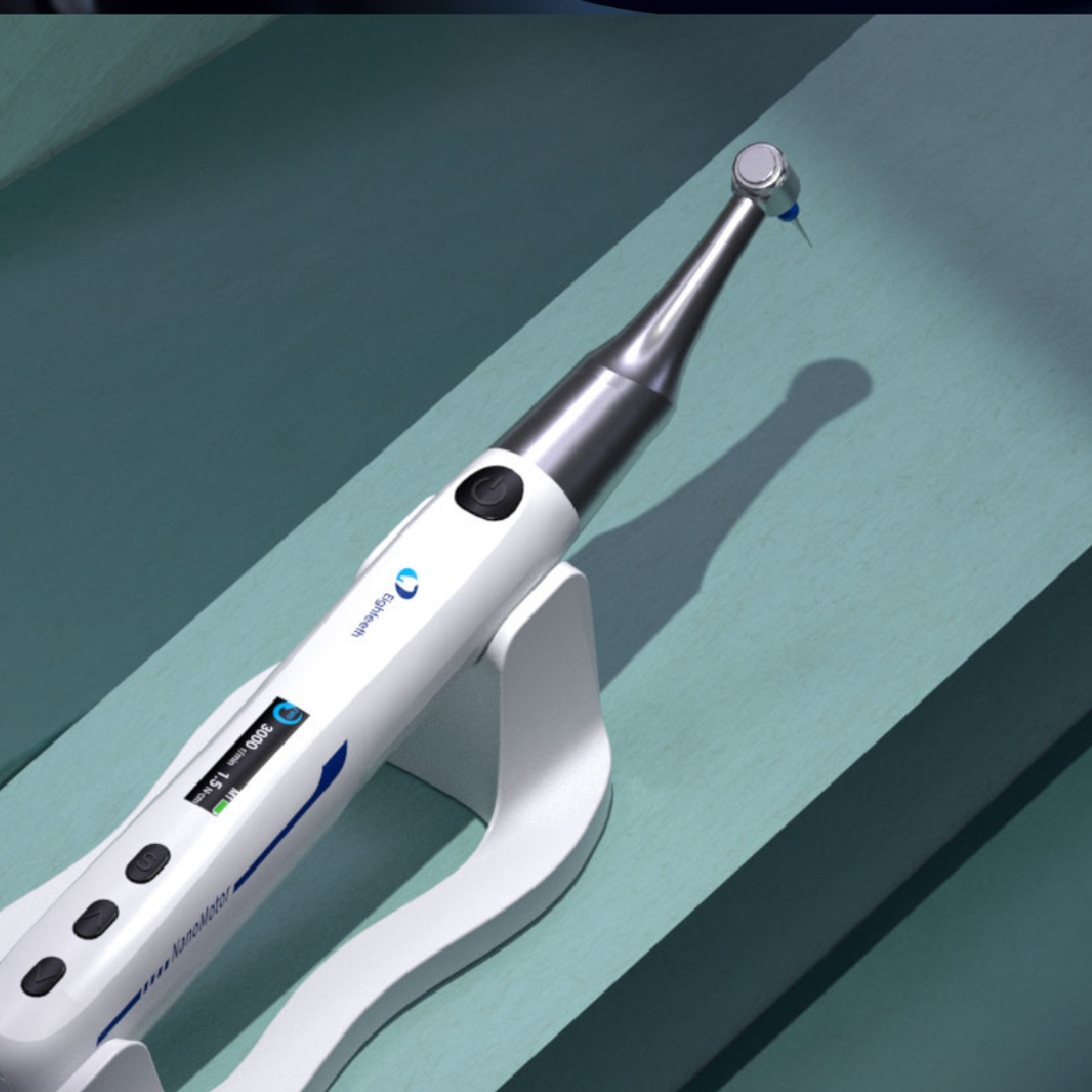

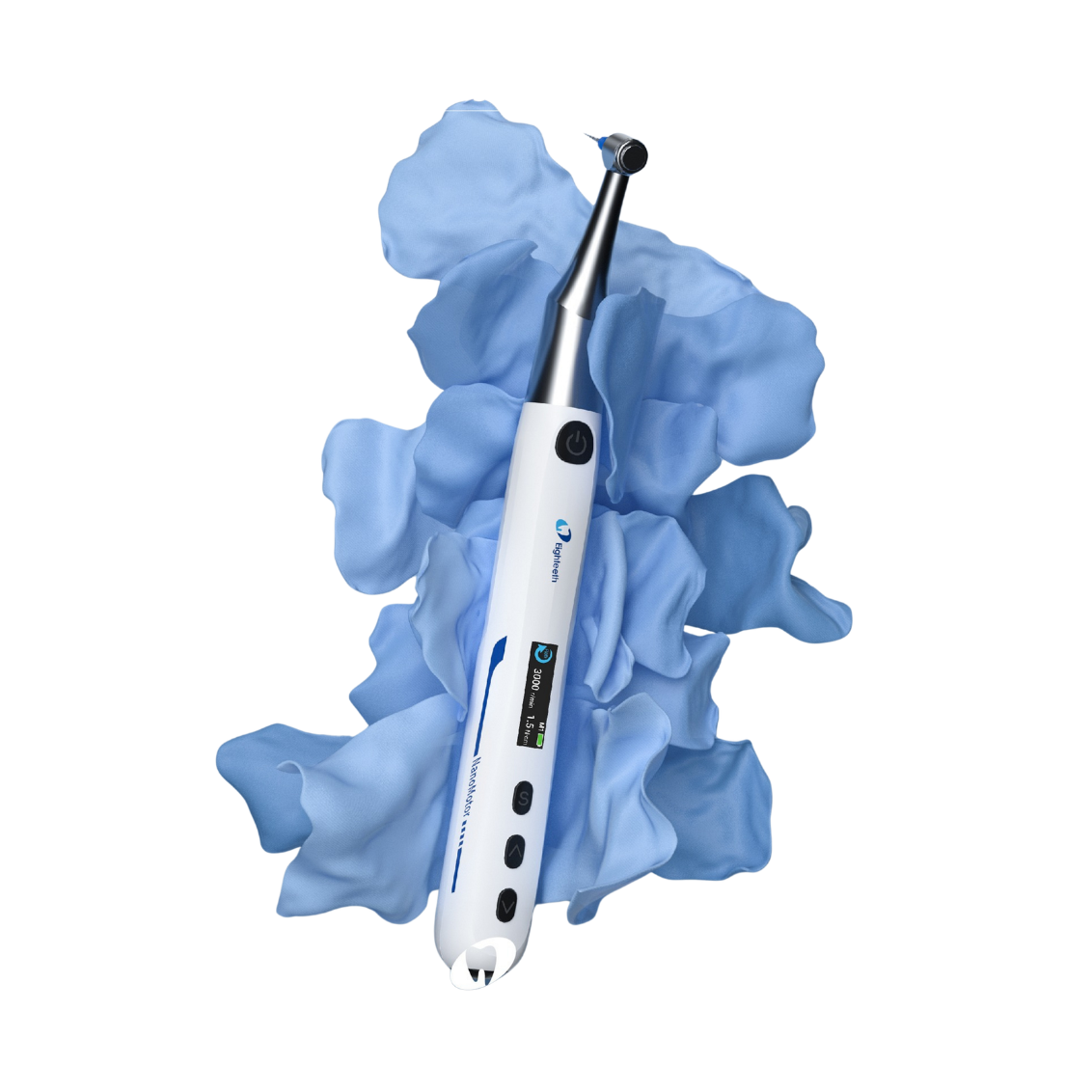

The Eighteeth NanoMotor is a cordless, brushless endodontic motor for root canal shaping. It weighs only 95 g with the contra-angle fitted, runs smoothly with low vibration, and covers rotary, reciprocating and glide-path protocols from one compact handpiece. It is supplied in the UAE by Bio Link Dubai.
Key benefits
- Ultra-light and ergonomic: 95 g handpiece (including contra-angle), 193 × 20 mm.
- Brushless motor: strong torque at high speed with less reciprocal vibration.
- TCA mode (Tactile Controlled Activation): explore the canal by hand, then activate the file at 10, 20 or 40 rpm. Helpful in curved and complex canals and for bypassing ledges.
- ARC mode (Adaptive Reciprocation): adjusts the reverse angle in real time based on torque feedback, giving larger cutting angles under low resistance and smaller angles under high resistance.
- Colour-coded display: speed, torque and angle values change colour when they go above or below the file system's preset values. Mainstream rotary and reciprocating file systems are pre-programmed.
- Measure while you shape: connects to the Eighteeth FindPex or E-Pex apex locator for simultaneous length measurement and preparation (requires the matching measuring wire).
- Mini 6:1 contra-angle (E-SAM 6:1): small head with 360° free rotation.
Technical specifications
| Speed range | 10–3000 rpm (M1–M9: 50–3000 rpm; TCA: 10 / 20 / 40 rpm) |
| Torque range | 0.5–5.0 N·cm |
| Operating modes | 6 (TCA, ARC, ATC, REC, FWD, REV) |
| Memory programs | 9 (M1–M9) |
| ARC mode speed | 100–400 rpm |
| ARC mode angle range | CW 20°–400°, CCW 120°–400° |
| REC mode angle range | CW & CCW 20°–400° |
| Contra-angle | E-SAM 6:1 |
| Handpiece size / weight | 193 × 20 mm / 95 g |
What's in the box
- 1 × E-SAM 6:1 dental contra-angle handpiece
- 1 × Motor handpiece
- 1 × Handpiece base
- 1 × Insulating sleeve
- 1 × Spray nozzle
- 1 × Adapter
Optional (sold separately): E-CAS 1:1 contra-angle for sonic irrigation and sealer introduction (50–300 Hz), and E-CAP 1:1 contra-angle for tooth polishing (300–18,000 rpm).
Who it's for
General dentists and endodontists in Dubai and across the UAE who want a light, cordless endo motor with adaptive reciprocation and integrated apex-locator support.
Product video
Need help choosing an endo motor or file system? Contact Bio Link Dubai on WhatsApp for advice, availability and delivery across the UAE.
