Product Overview

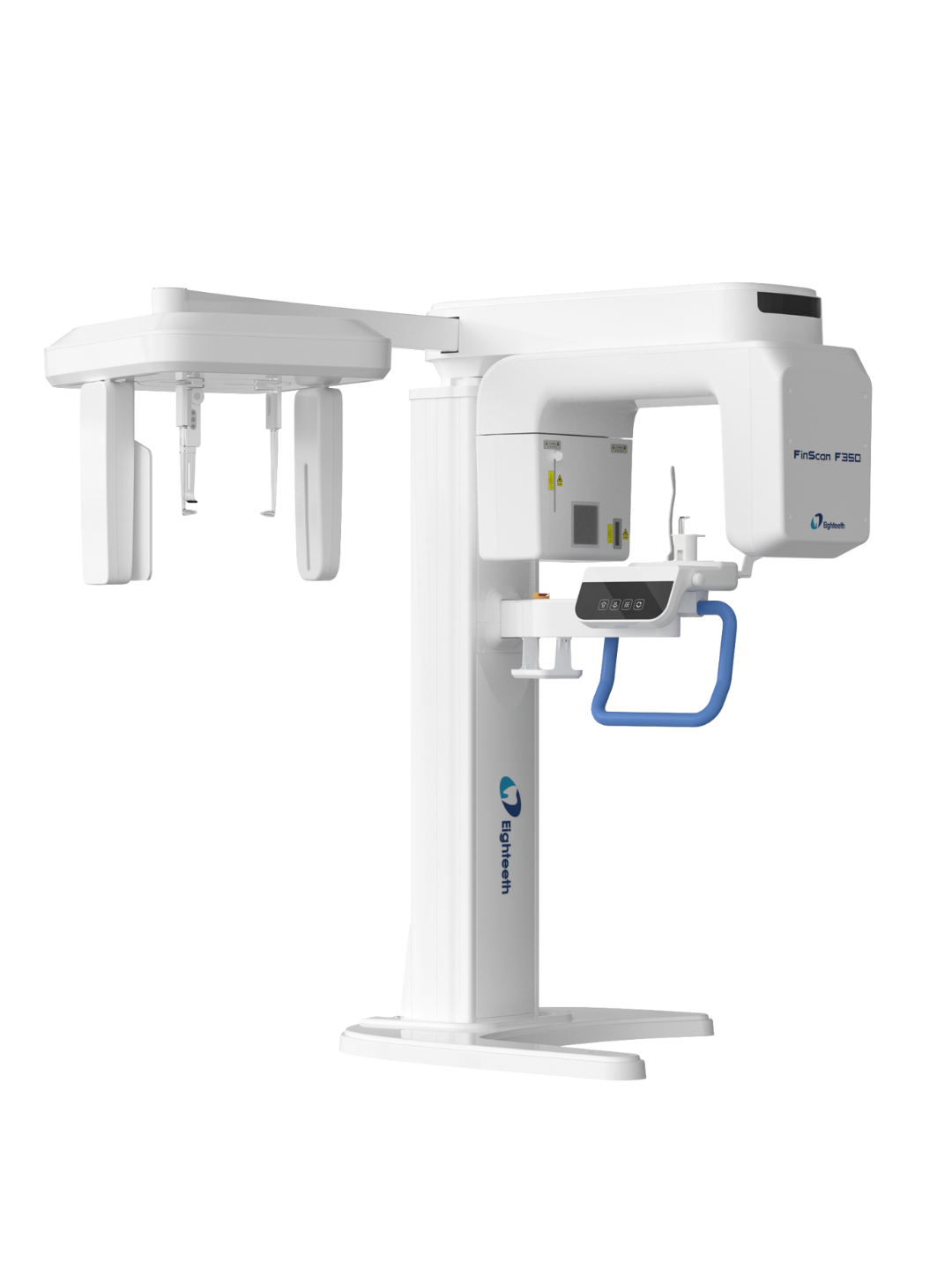

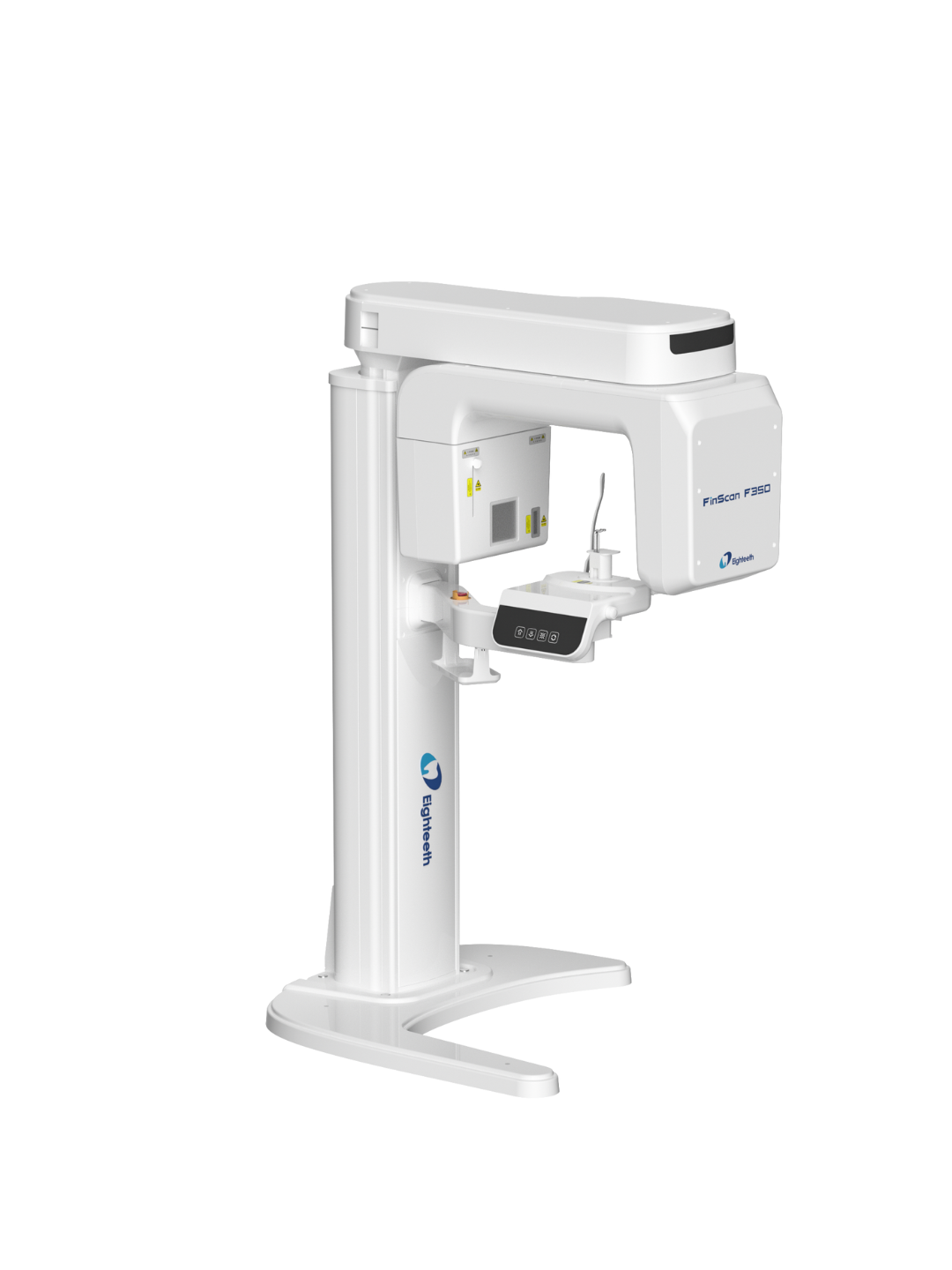

The FinScan F350 CBCT Unit is a high-performance dental imaging system designed for precision diagnostics. With advanced 3D imaging technology, multiple scanning modes, and intelligent software, it supports a wide range of clinical applications, including implant planning, orthodontics, TMJ analysis, and endodontics. Its compact design and efficient workflow integration make it an excellent choice for modern dental practices.
Key Features
Multi-Mode Imaging – CBCT, Panoramic, Cephalometric, and TMJ scans
High-Resolution Imaging – Clear 3D visuals with advanced noise and artifact reduction
X-ray Tube - Toshiba X-ray Tube (from Japan)
Intelligent Metal Artifact Reduction – Enhances clarity around restorations and implants
Fast 9-Second HD Scanning – Reduced radiation exposure without compromising image quality
Adjustable Field of View (FOV) – 4×4cm, 8×8cm, and 16×10cm scanning options for various clinical needs
Compact & Ergonomic Design – Small footprint with an L-shaped open base for easy patient positioning
5-Year Manufacturer Warranty – Extendable for added peace of mind
Technical Specifications
Dimensions: 74.5 in (W) × 42.9 in (D) × 89.8 in (H)
Weight: 485 lbs (±10%)
Tube Voltage Range: 60 kV – 100 kV
Focal Spot Size: 0.5 mm
Voxel Sizes: 0.10 mm, 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm
Detector Type: CsI + TFT array
Gray Scale: 16-bit
Scan Times:
CT: 9s or 18s
Panoramic: 14s
Cephalometric: 6s or 8s
Reconstruction Time: ≤ 60s
Patient Positioning: Standing with electric height adjustment & manual head positioning
What’s Included with Your Order?
FinScan F350 CBCT Unit – Fully integrated imaging system
Control Workstation – Pre-installed with image acquisition & analysis software
Patient Positioning Aids – Ensuring accurate and comfortable scans
Calibration Tools – For precise imaging accuracy
Comprehensive Documentation – User manuals and maintenance guides
