E-Connect S - Endomotor with built in Apex Locator

E-Connect S - Endomotor with built in Apex Locator

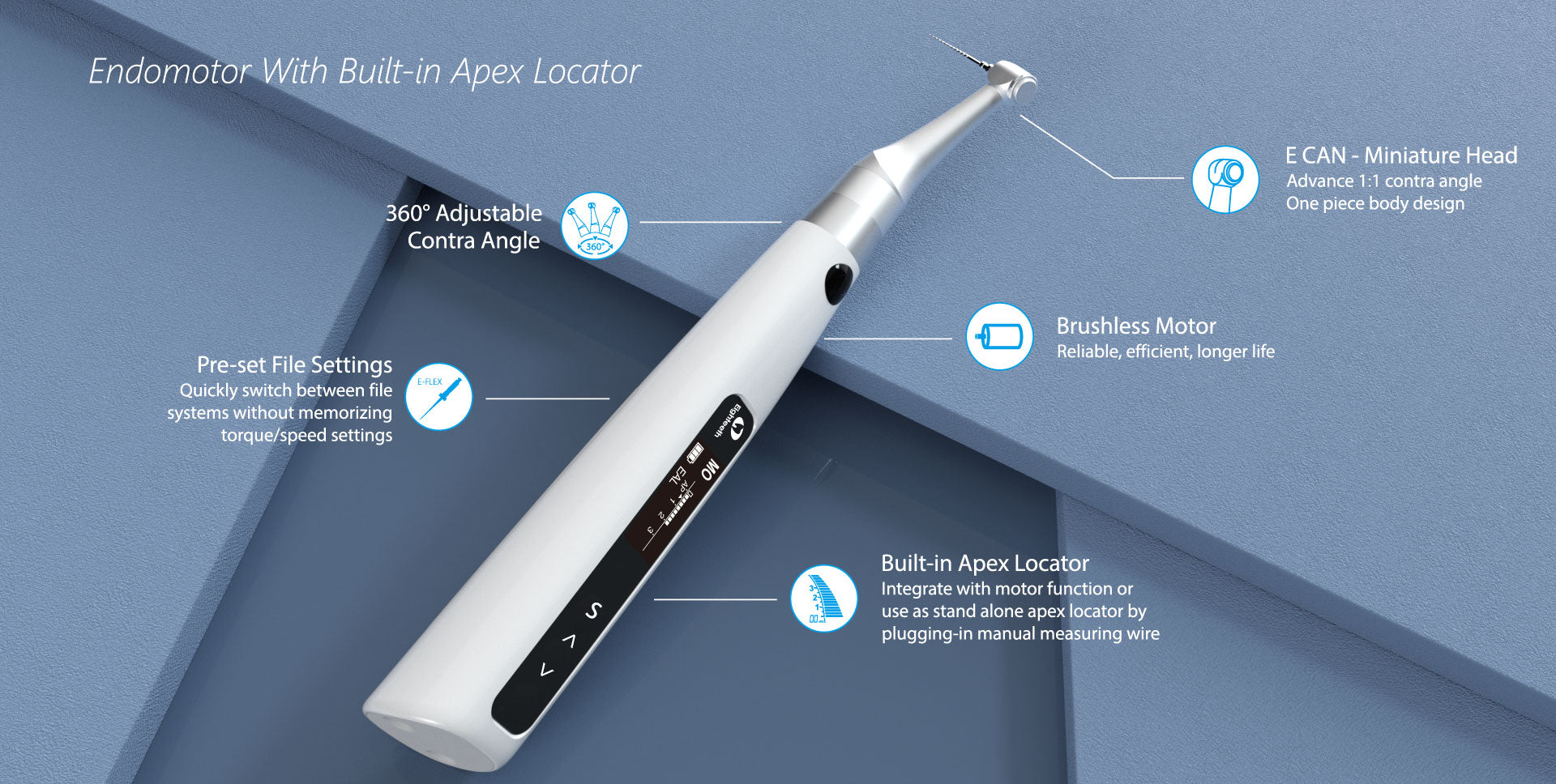

Brushless Endomotor with root canal measurement capability. It can be used as an endomotor for preparation and enlargement of root canals, or device for measuring canal length. It can be used to enlarge the canals while monitoring the position of the file tip inside the canal.

• Brushless motor
• Cordless handle
• Reciprocating mode with adjustable speed and adjustable angles from 30° to 370°
• Continuous Rotation – Speed 120 to 1000 rpm
• Pre-settings of almost all file systems, both rotary and reciprocating. Can be customized by the user
• Built-in Apex Locator: integrate with motor function or use as standalone apex locator

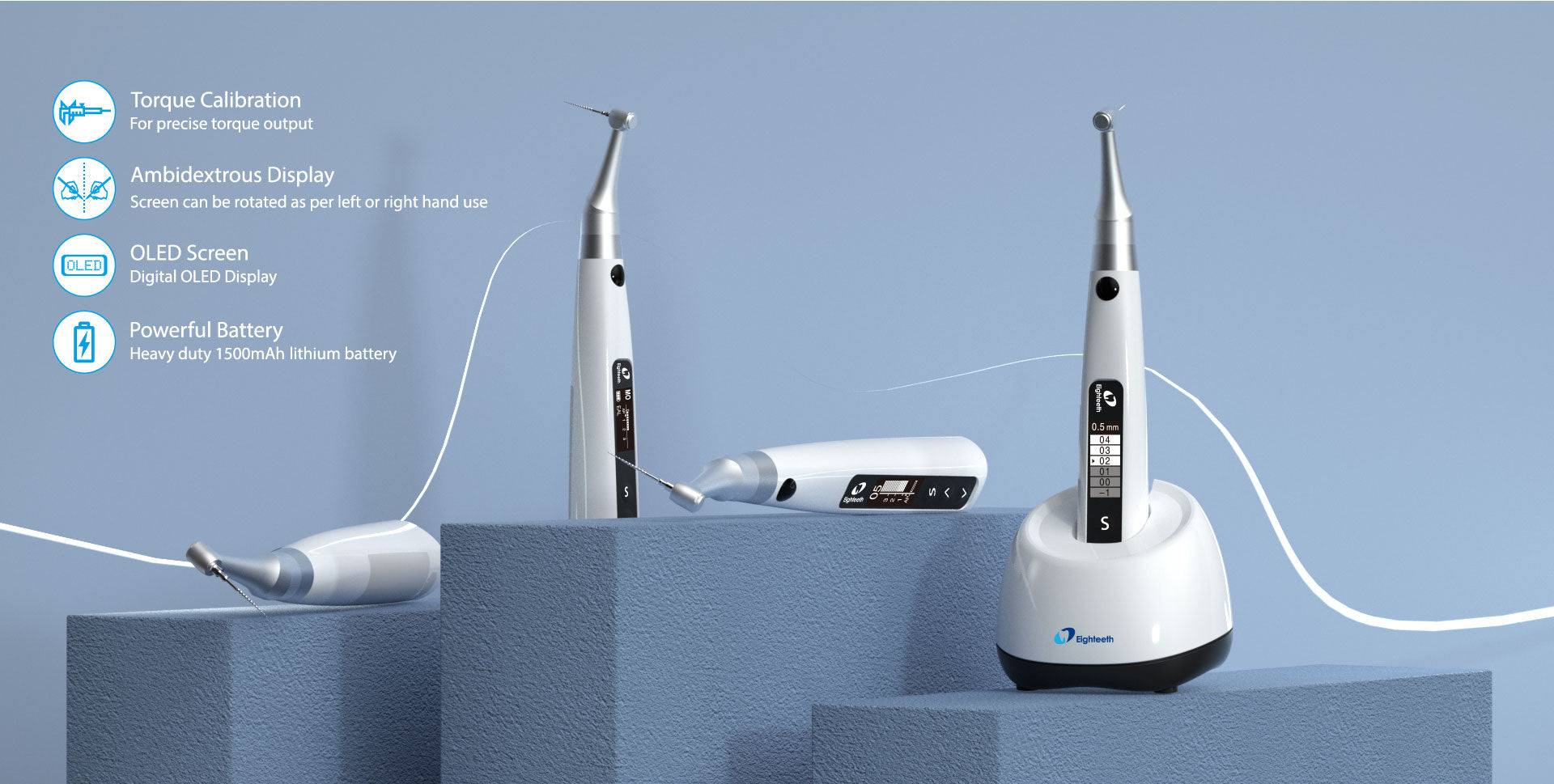

• Torque Calibration
• Ambidextrous Display - Screen can be rotated for left or right-hand use

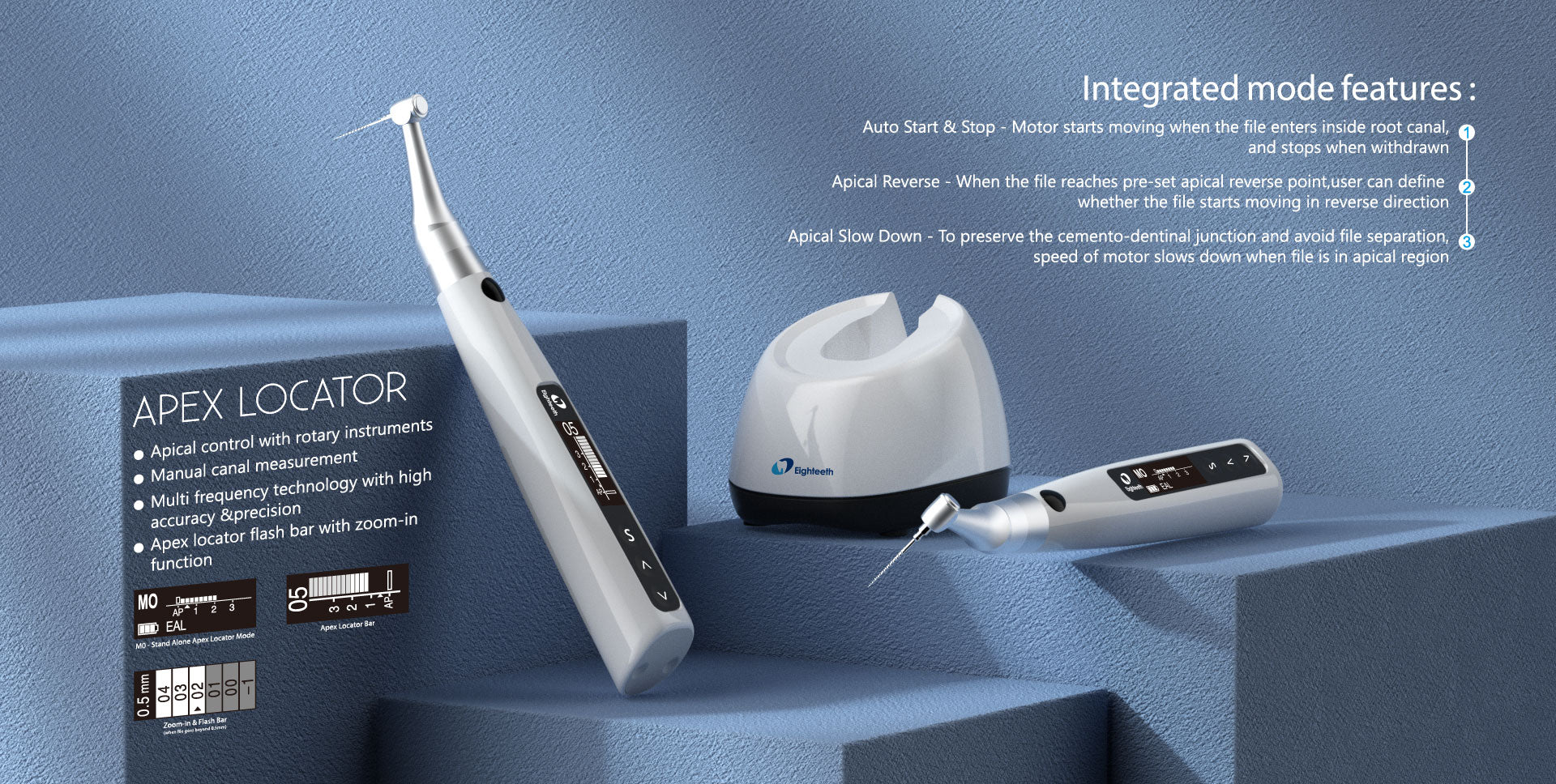

• Auto Start and Stop - Motor starts moving when the file enters inside the root canal, and stops when withdrawn

• Apical Reverse: When the file reaches pre-set apical reverse point, user can define whether the file starts moving in reverse direction
• Apical Slow Down: to preserve the cemento-dentinal junction and avoid file separation, speed of motor slows down when the file is in apical region
• OLED screen
• Powerful Li-ion battery

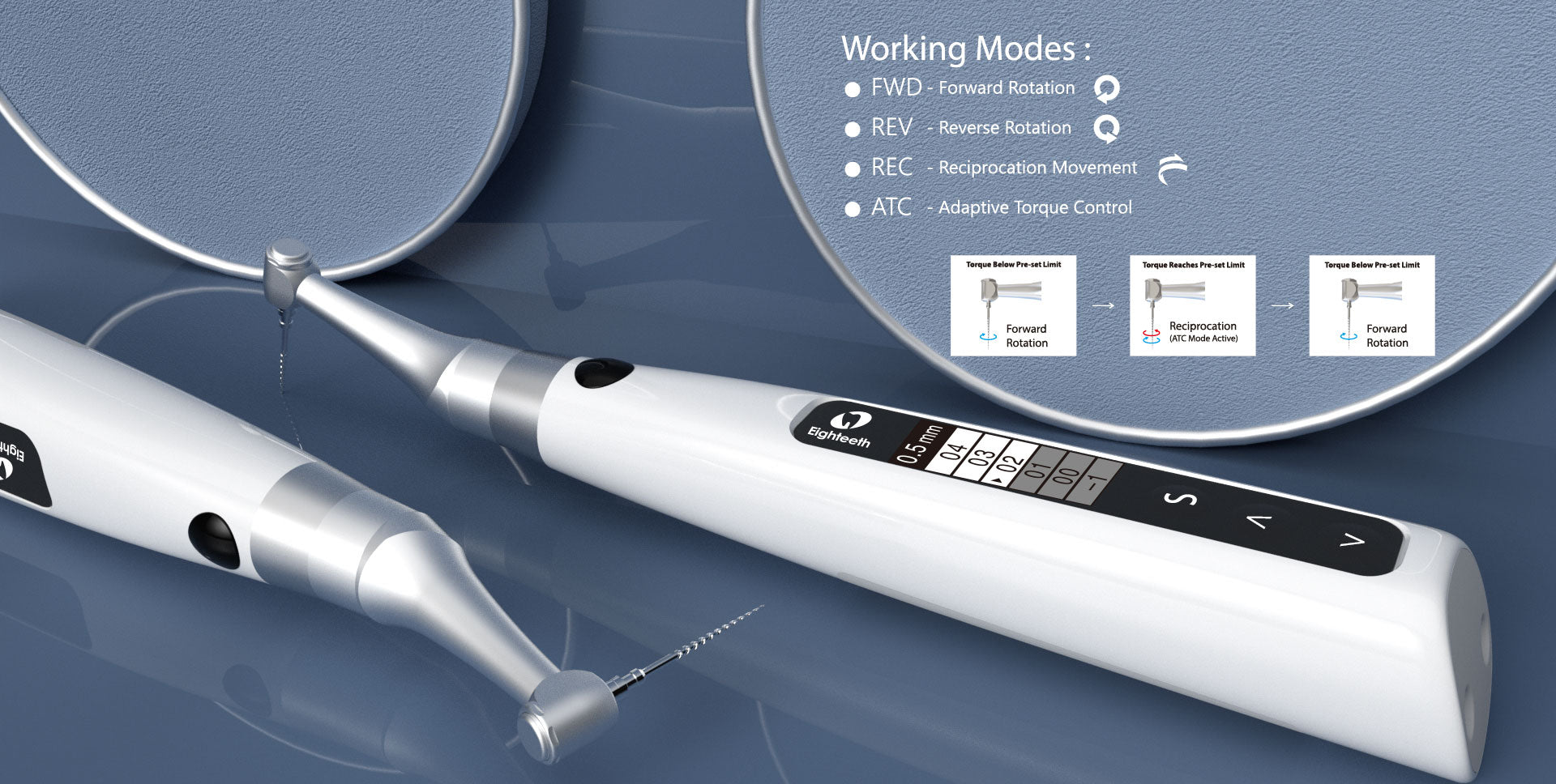

Different working modes:
    CW: Clockwise Continuous Rotation
    CCW: Counter Clockwise Continuous Rotation
    REC: Reciprocation Movement
    ATC: Adaptive Torque Control

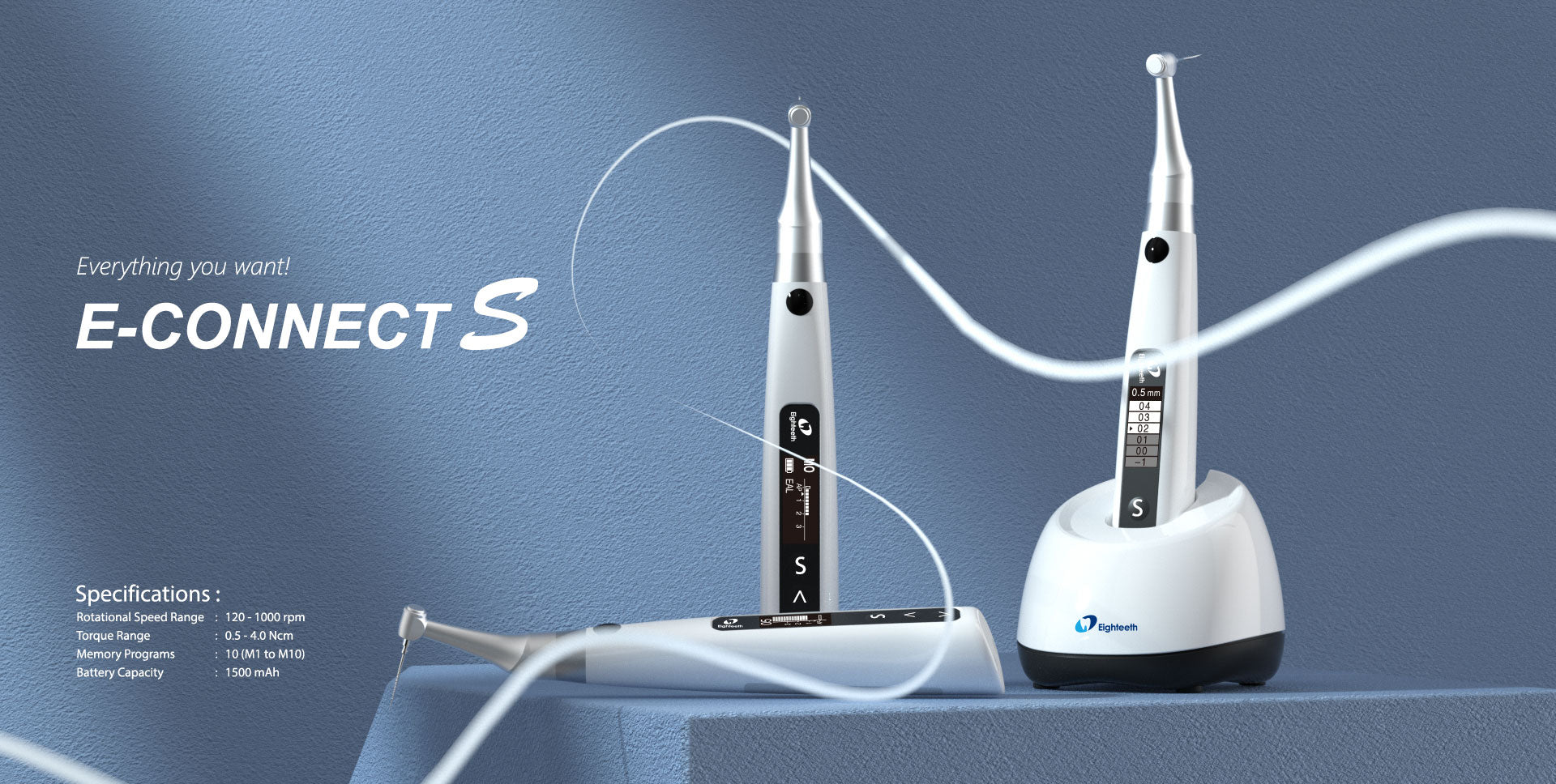

Rotational Speed Range: 120-1000rpm
Torque Range:   0.5-4.0Ncm
Memory Programs:   11(M0-M10)
Battery Capacity:   1500mAh
