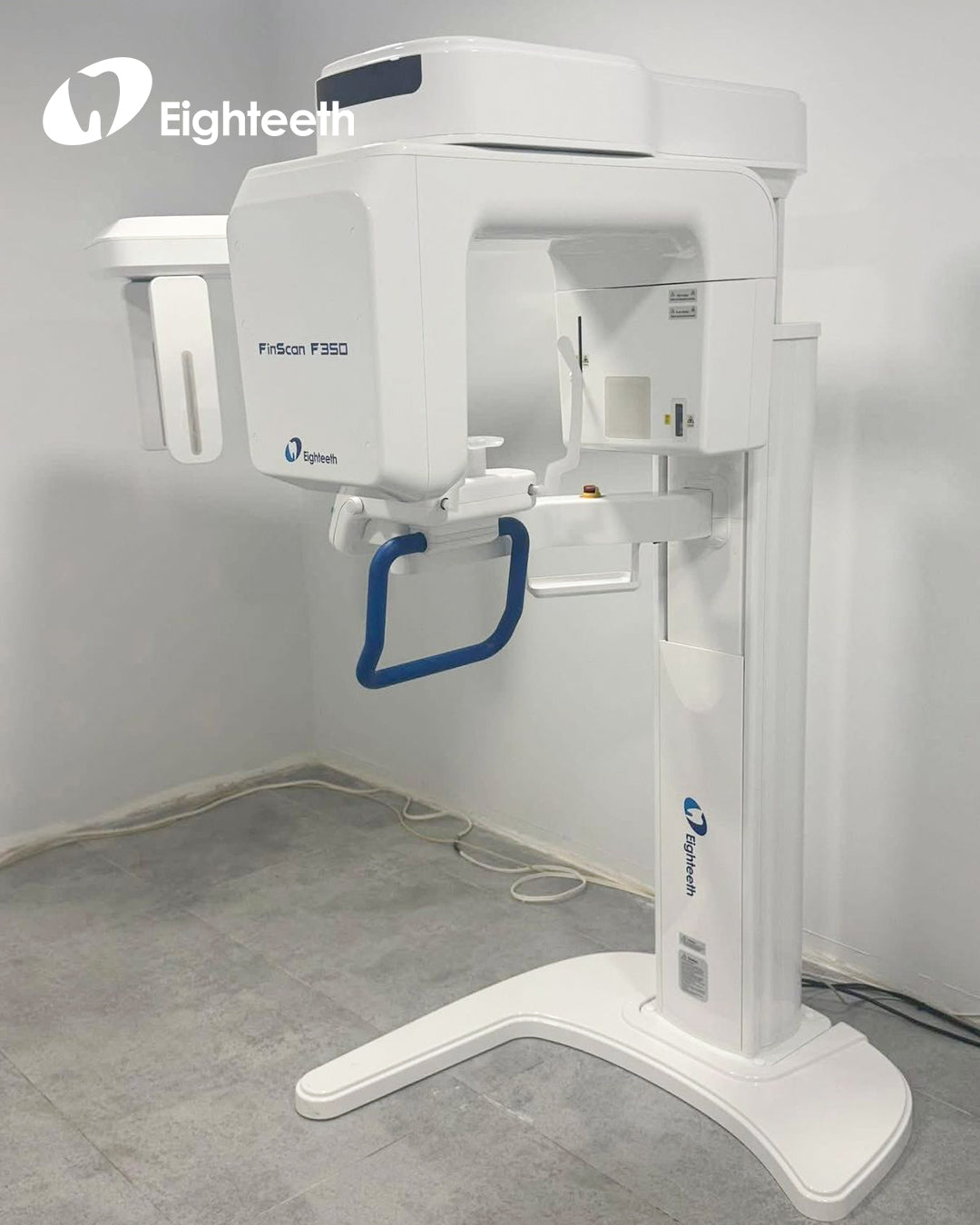

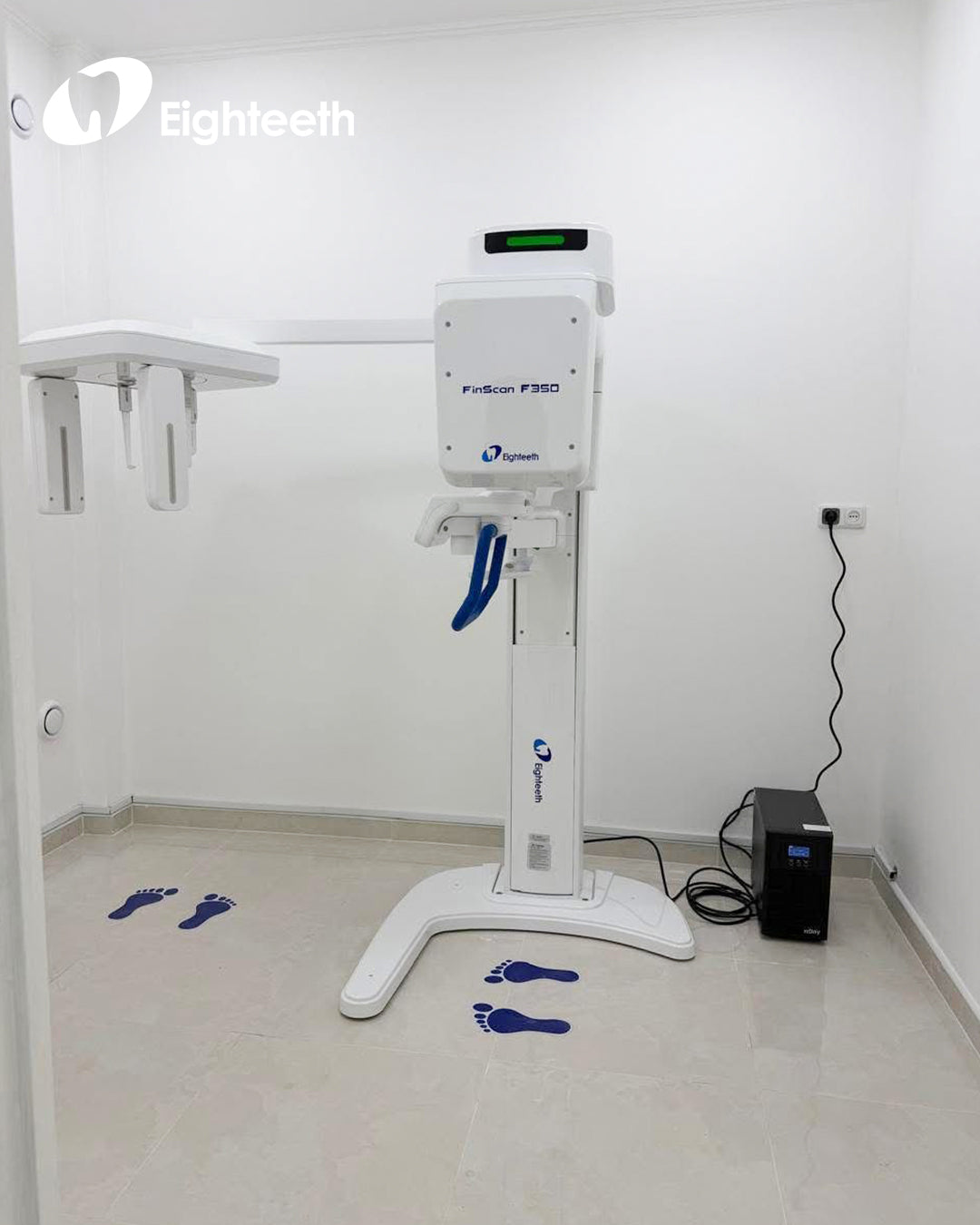

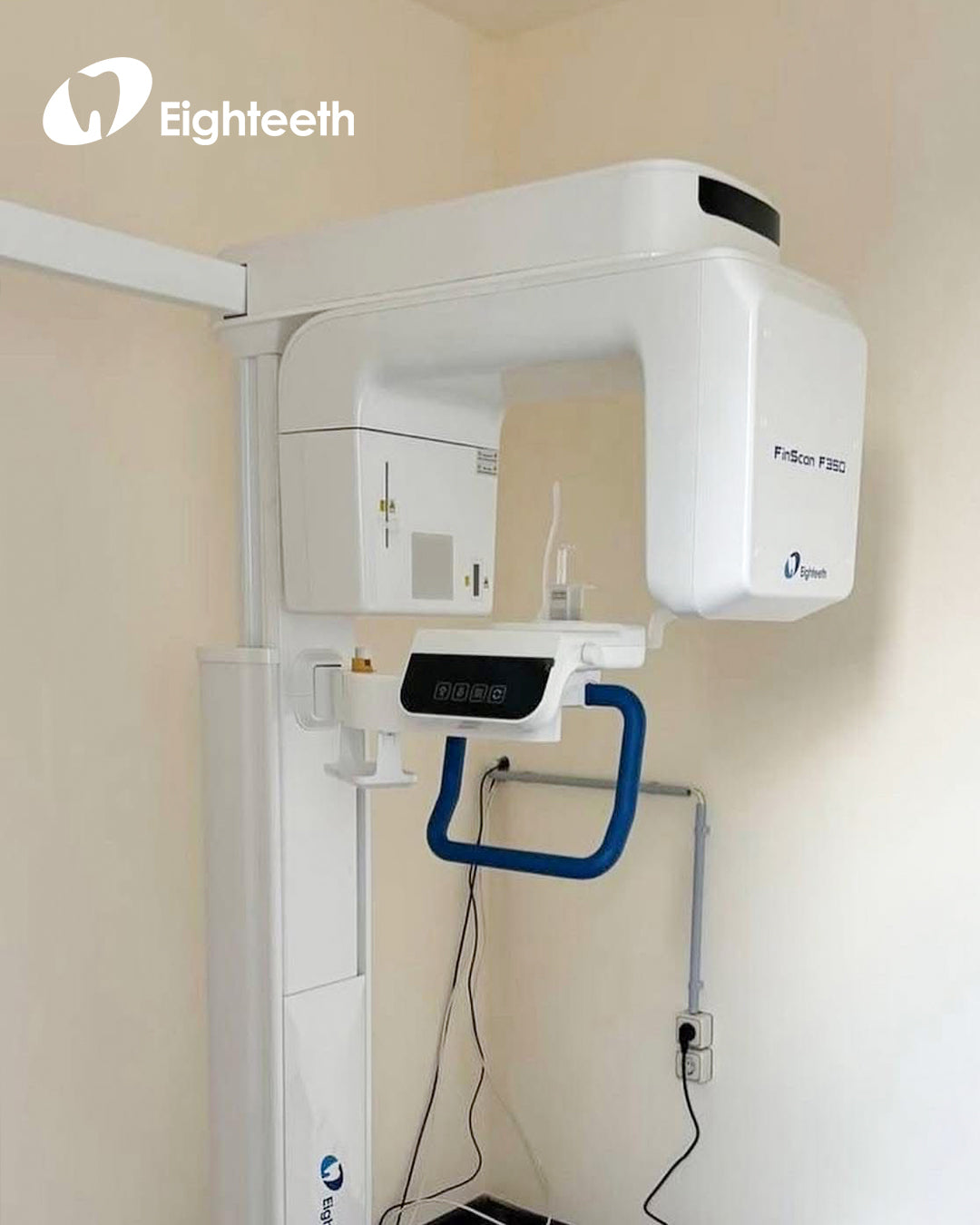

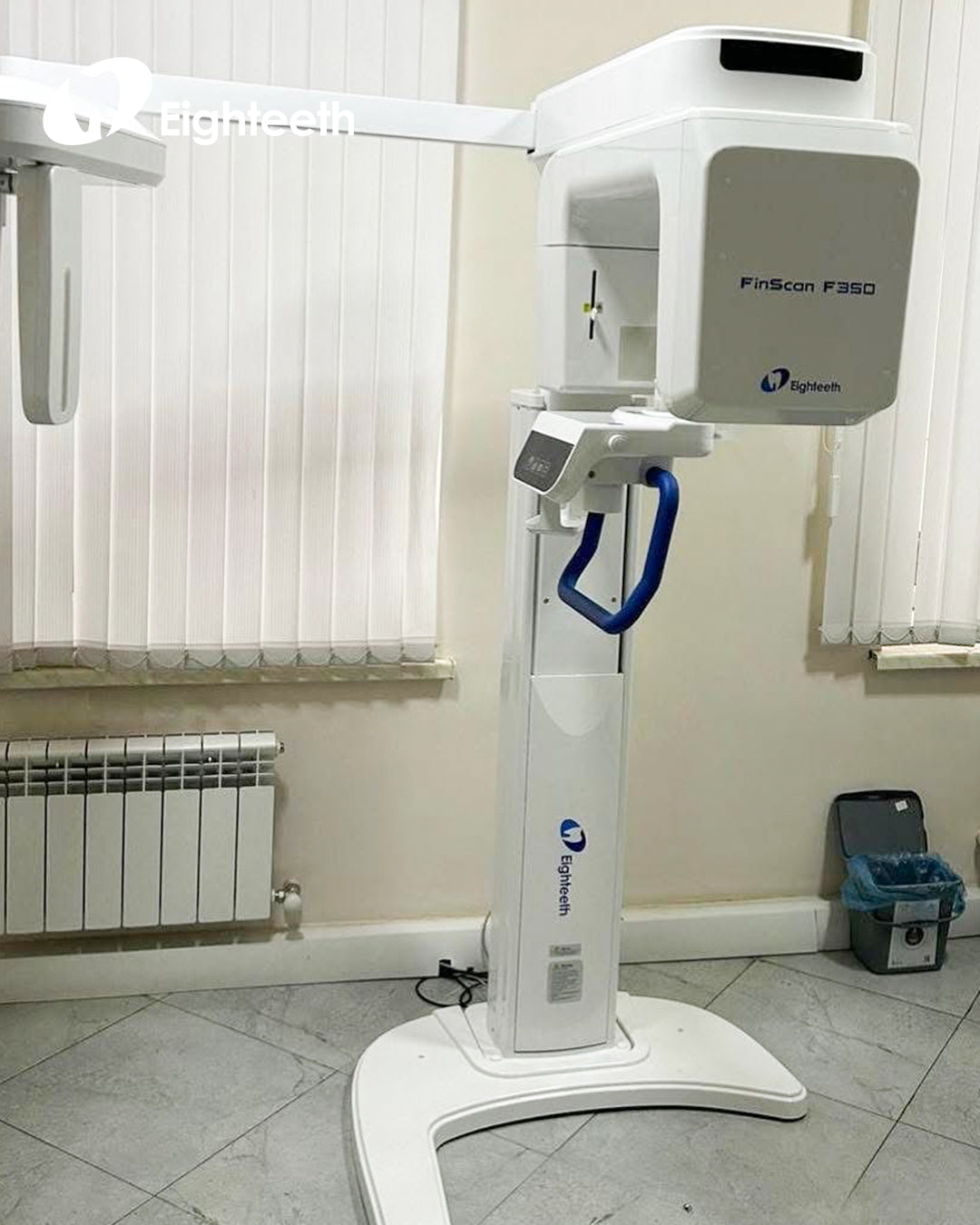

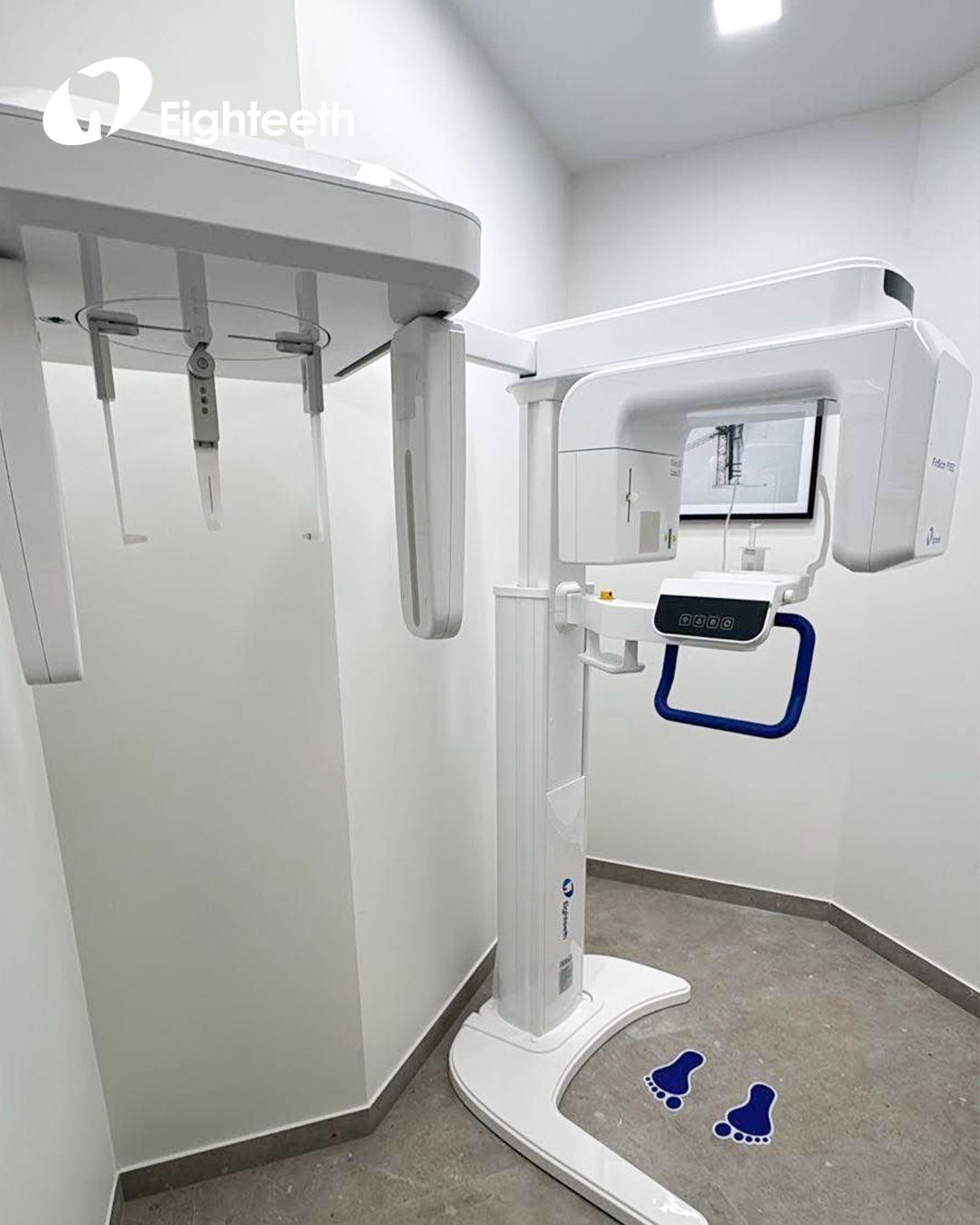

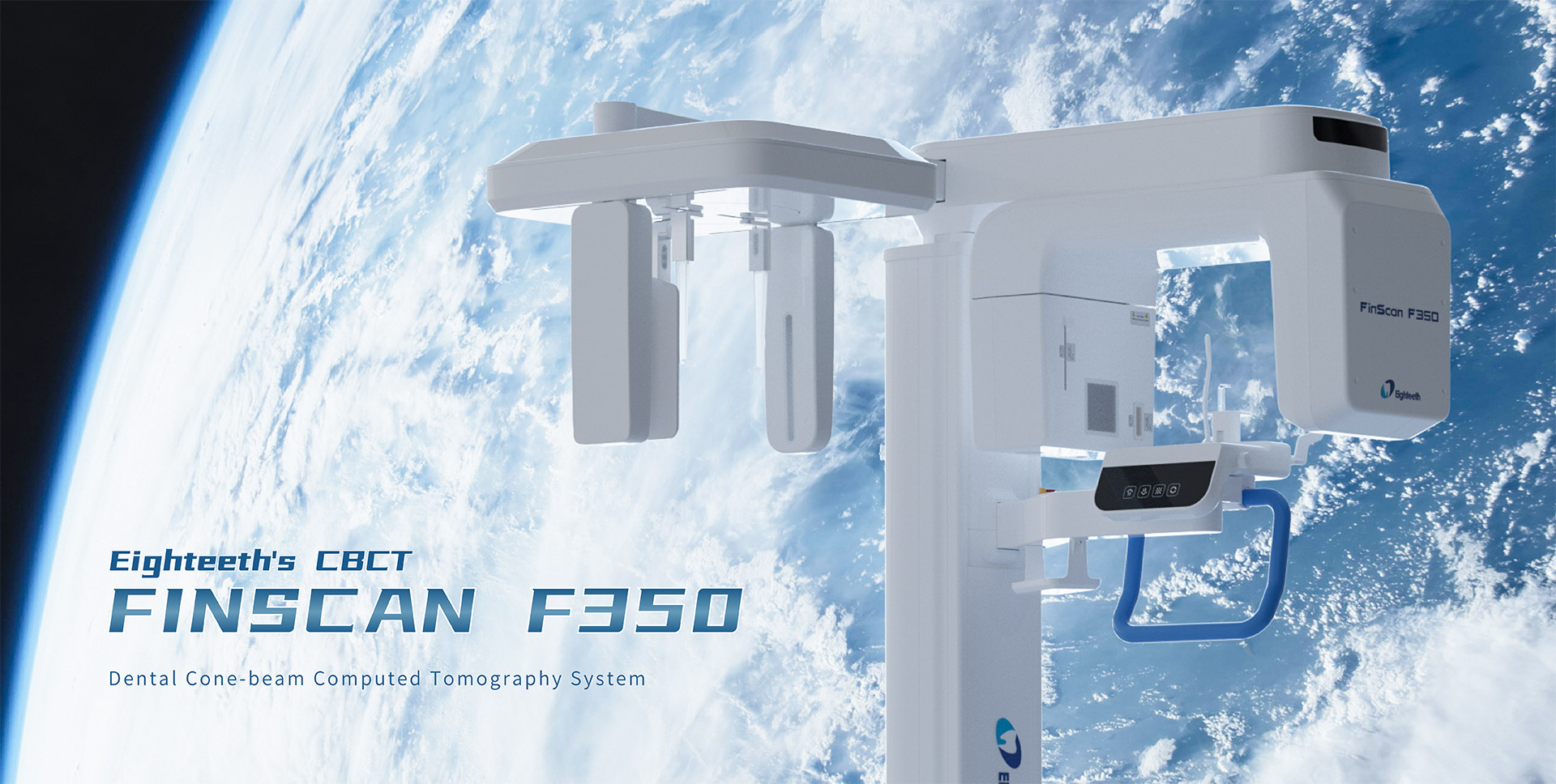

FinScan F350 CBCT Unit

The FinScan F350 CBCT Unit is a high-performance dental imaging system designed for precision diagnostics. With advanced 3D imaging technology, multiple scanning modes, and intelligent software, it supports a wide range of clinical applications, including implant planning, orthodontics, TMJ analysis, and endodontics. Its compact design and efficient workflow integration make it an excellent choice for modern dental practices.

Key Features

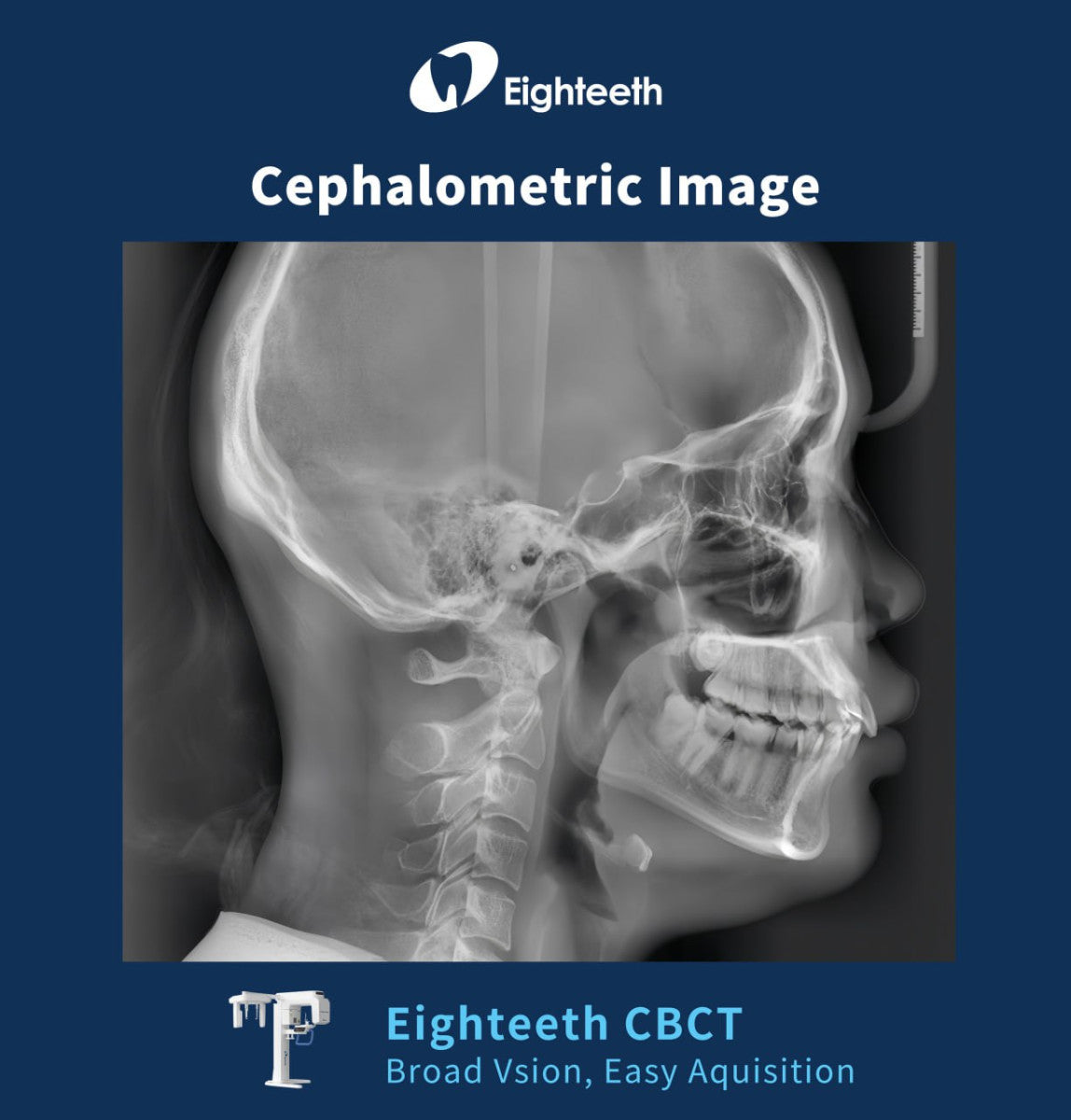

Multi-Mode Imaging – CBCT, Panoramic, Cephalometric, and TMJ scans

High-Resolution Imaging – Clear 3D visuals with advanced noise and artifact reduction

X-ray Tube - Toshiba X-ray Tube (from Japan)
Intelligent Metal Artifact Reduction – Enhances clarity around restorations and implants

Fast 9-Second HD Scanning – Reduced radiation exposure without compromising image quality

Adjustable Field of View (FOV) – 4×4cm, 8×8cm, and 16×10cm scanning options for various clinical needs

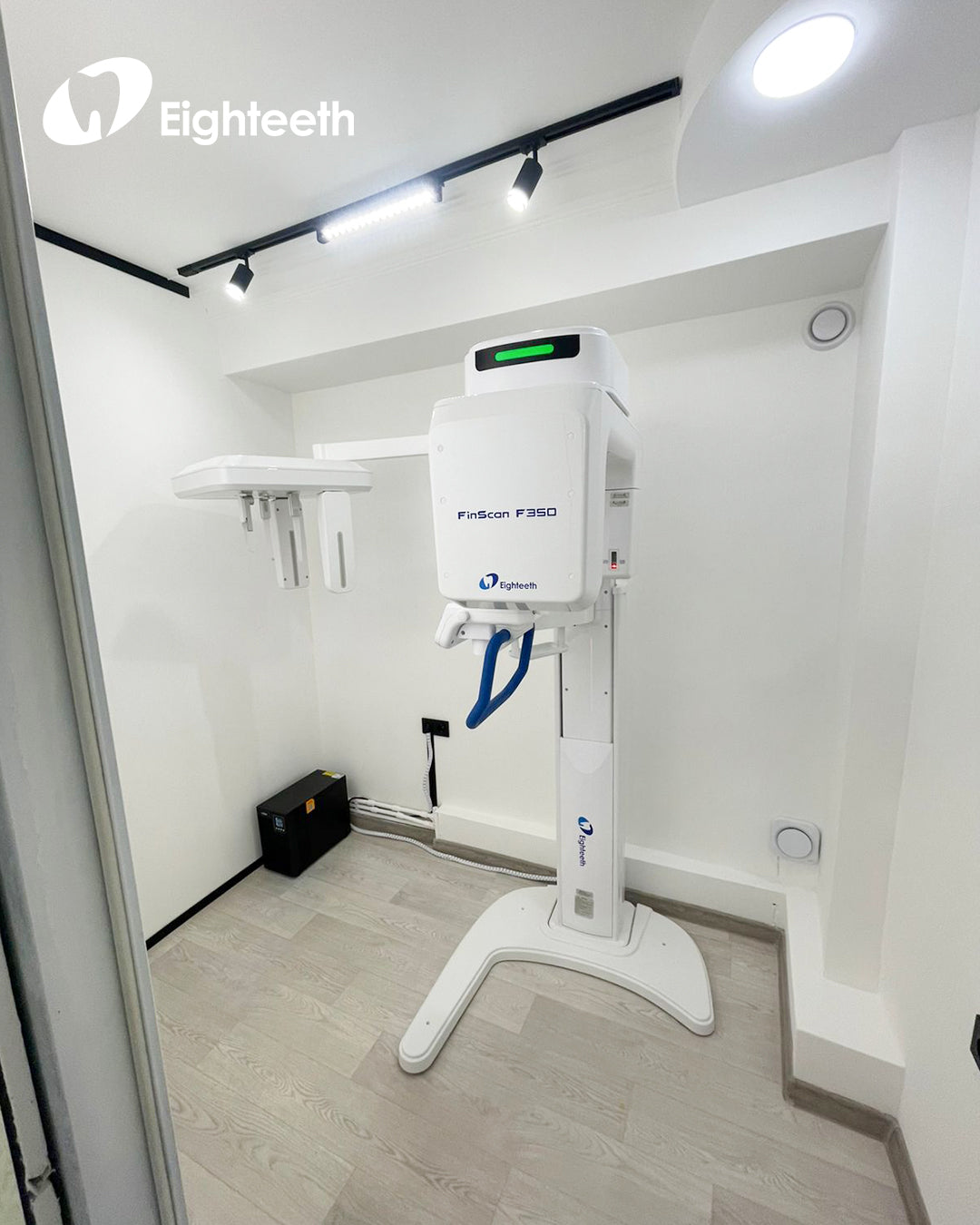

Compact & Ergonomic Design – Small footprint with an L-shaped open base for easy patient positioning

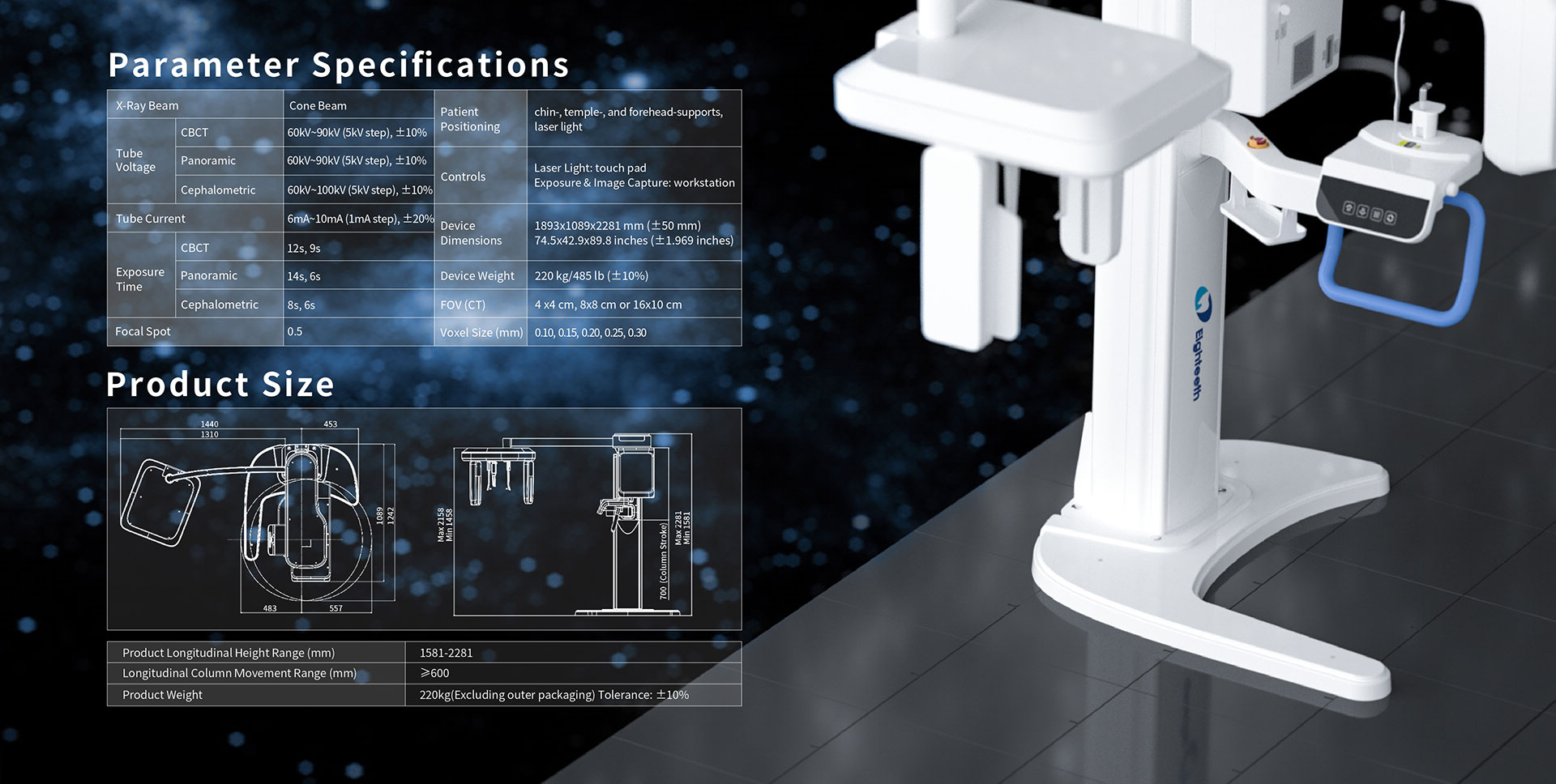

Technical Specifications
Dimensions: 74.5 in (W) × 42.9 in (D) × 89.8 in (H)

Weight: 485 lbs (±10%)

Tube Voltage Range: 60 kV – 100 kV

Focal Spot Size: 0.5 mm

Voxel Sizes: 0.10 mm, 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm

Detector Type: CsI + TFT array

Gray Scale: 16-bit

Scan Times:

CT: 9s or 18s

Panoramic: 14s

Cephalometric: 6s or 8s

Reconstruction Time: ≤ 60s

Patient Positioning: Standing with electric height adjustment & manual head positioning

What’s Included with Your Order?
FinScan F350 CBCT Unit – Fully integrated imaging system

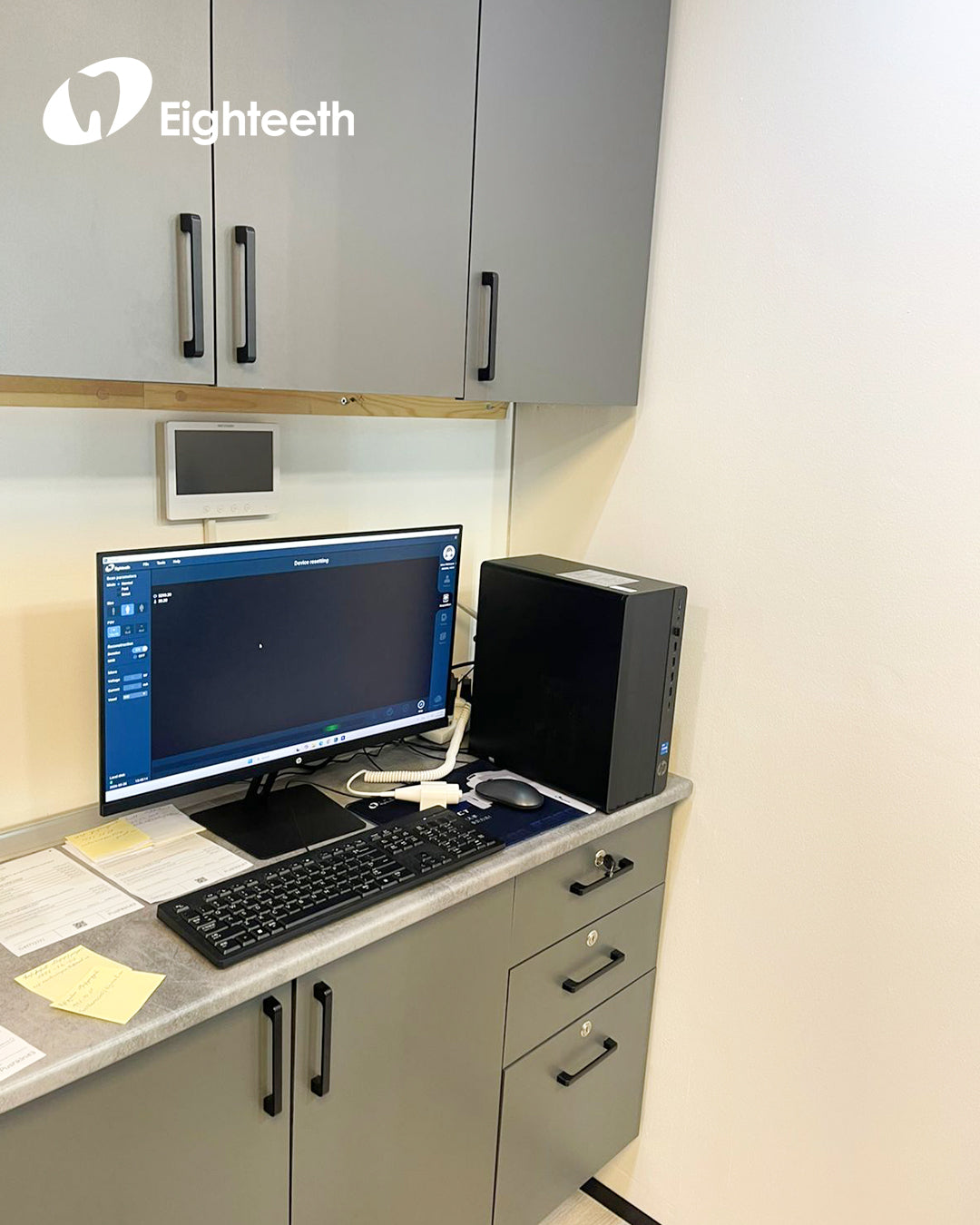

PC Control Workstation – Pre-installed with image acquisition & analysis software

Three Years Warrantee

Patient Positioning Aids – Ensuring accurate and comfortable scans

Calibration Tools – For precise imaging accuracy

Comprehensive Documentation – User manuals and maintenance guides.

Click here to view the catalogue.
