Gentilin

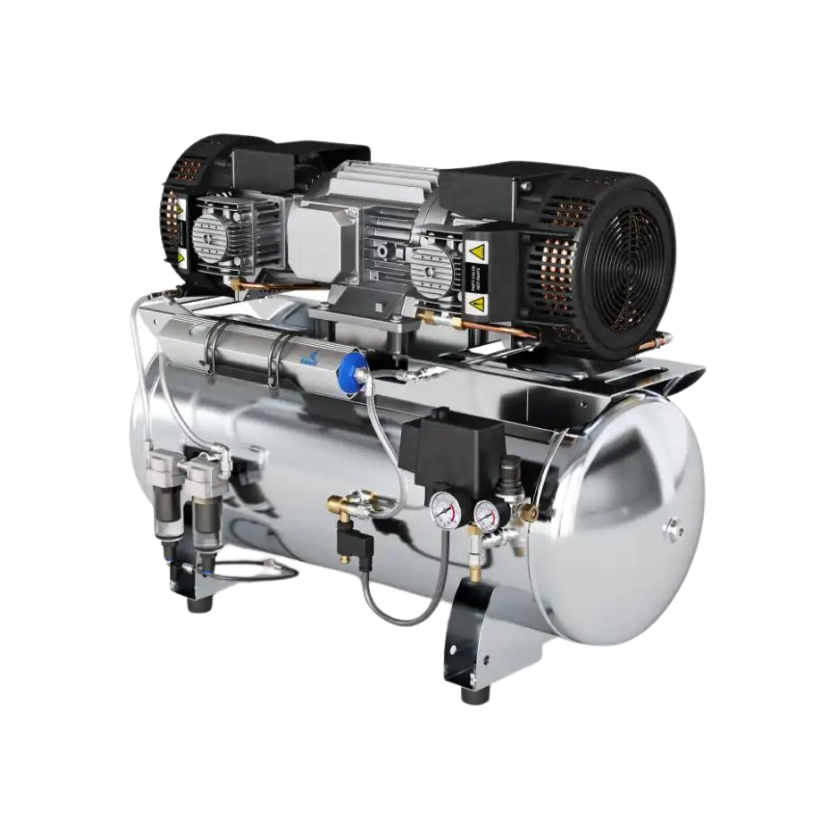

CLINIC DRY 6/90 H
CLINIC DRY 6/90 H
Technical Data
| Condensate Treatment : | Essiccatore a membrana | punto di rugiada -40°C |
|---|---|
| Particulate Treatment : | 0,3 µm |
| Air purity class (ISO 8573-1) : | 3-2-0 |
| Voltage (V) : | 230 |
| Frequency (Hz) : | 50 |
| Nominal rating (kW) : | 2,80 |
| Nominal rating (HP) : | 3,75 |
| Rotation speed (rpm) : | 1.400,00 |
| Starting current (A) : | 14,00 |
| Number of cylinders : | 4 |
| FAD (L/min) : | 320,00 |
| Air Delivery (L/min @5 bar) : | 235,00 |
| Air Delivery (L/min @8 bar) : | 180,00 |
| Maximum pressure (bar) : | 10,00 |
| Noise level (3,00m @ 5,00 bar (dB(A)) : | 72,00 |
| Duty cycle : | S1 100% |
| Tank Coating : | Acciaio Inox AISI 304 |
| Tank capacity (lt) : | 90 |
| First Maintenance (hours) : | 3000 |
| Hour Meter : | Incluso |
| Tank Automatic Drain Valve : | Optional |
Product dimensions:
| Length (mm) : | 990,00 |
|---|---|
| Width (mm) : | 490,00 |
| Height (mm) : | 710,00 |
| Weight (Kg) : | 86,00 |
Single piece packaging dimensions :
| Length (mm) : | 1100,00 |
|---|---|
| Width (mm) : | 600,00 |
| Height (mm) : | 900,00 |
| Weight (Kg) : | 105,00 |
