Gentilin

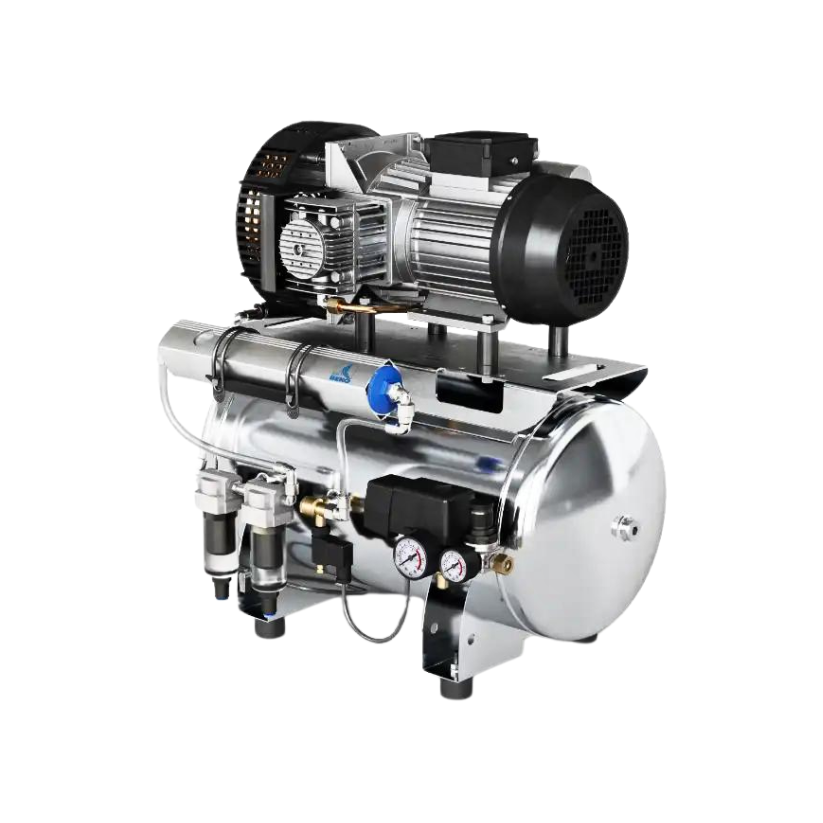

CLINIC DRY 3/40 HS
CLINIC DRY 3/40 HS
Technical Data
| Condensate Treatment : | Membrane dryer | Dew point -40°C |
|---|---|
| Particulate Treatment : | 0,01µm | Sterilizing filter |
| Air purity class (ISO 8573-1) : | 0-2-0 |
| Voltage (V) : | 230,00 |
| Frequency (Hz) : | 50 |
| Nominal rating (kW) : | 1,80 |
| Nominal rating (HP) : | 2,20 |
| Rotation speed (rpm) : | 1.400,00 |
| Starting current (A) : | 8,50 |
| Number of cylinders : | 2 |
| FAD (L/min) : | 170,00 |
| Air Delivery (L/min @5 bar) : | 135,00 |
| Air Delivery (L/min @8 bar) : | 110,00 |
| Maximum pressure (bar) : | 10,00 |
| Noise level (3,00m @ 5,00 bar (dB(A)) : | 67,00 |
| Duty cycle : | S1 100% |
| Tank Coating : | Stainless steel AISI 304 |
| Tank capacity (lt) : | 40,00 |
| First Maintenance (hours) : | 3000 |
| Hour Meter : | Included |
| Tank Automatic Drain Valve : | Optional |
Product dimensions:
| Length (mm) : | 650,00 |
|---|---|
| Width (mm) : | 460,00 |
| Height (mm) : | 660,00 |
| Weight (Kg) : | 42,00 |
Single piece packaging dimensions:
| Length (mm) : | 570 |
|---|---|
| Width (mm) : | 680 |
| Height (mm) : | 950 |
| Weight (Kg) : | 47,00 |
Full pallet packaging dimensions:
| Dimensions (mm) : | 1140x680x1900 |
|---|---|
| Weight (Kg) : | 172,00 |
| Pieces : | 4 |
